ARRAY WINCHES
Array Winches
0.3Te - 200m Datasheet
| Weight without cable | 1620 Kg |
| Cable diameter | 48 mm |
| Capacity | 200 m |
| Line speed - First Layer | 32 m/min |
| Line speed - Top Layer | 42 m/min |
| WLL - First Layer | 300 Kg |
| WLL - Top Layer | 229 Kg |
| Brake Minimum 1.5 WLL - First Layer | 450 Kg |
| Brake Minimum 1.5 WLL - Top Layer | 344 Kg |
| Supply Required | 380-440V-3 Ph- 50/60 Hz |
| Winch Electrical Motor | 2.2 Kw IP56 IE3 |
| Local Proportional Control | Bi-directionally proportional joystick and speed control potentiometer |
| Level wind | N/A |
| Dimensions (LxWxH) Footprint | 2165 x 1258 x 2080 mm 2120 x 1170 mm |
| Slip ring | Designed to accept Focal 180 or similar not within scope of supply |
| Frame details | Crash frame with guards, fork lifting pockets and certified lifting lugs |
| Winch drum dimensions | Drum core Ø 1200 mm, Drum Length 480 mm, Flange Ø 1980 mm |
| Drum details | Plain drum; the umbilical is stored in 5 lays with 10 turns per lay |
| Drum flanges 4 off - Ø 20 mm holes | To enable the winch drum to be “stoppered” off to a lug on the frame during long tow |
| Cable | Mini-Streamer Ø 48 mm |
| Forward support cross bar | Easily removable, via bolts, to allow equipment to pass |
Principle of Operation:

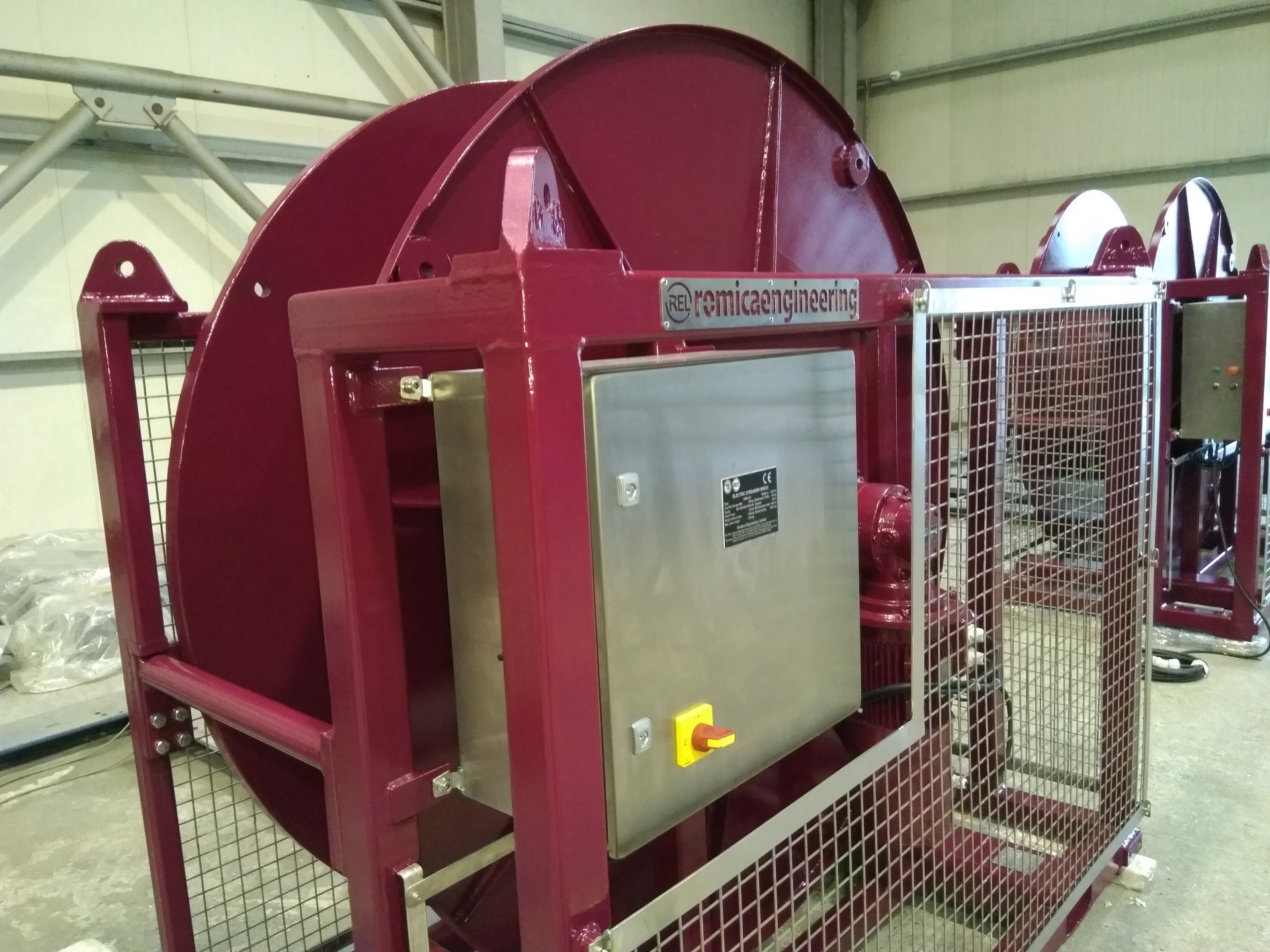

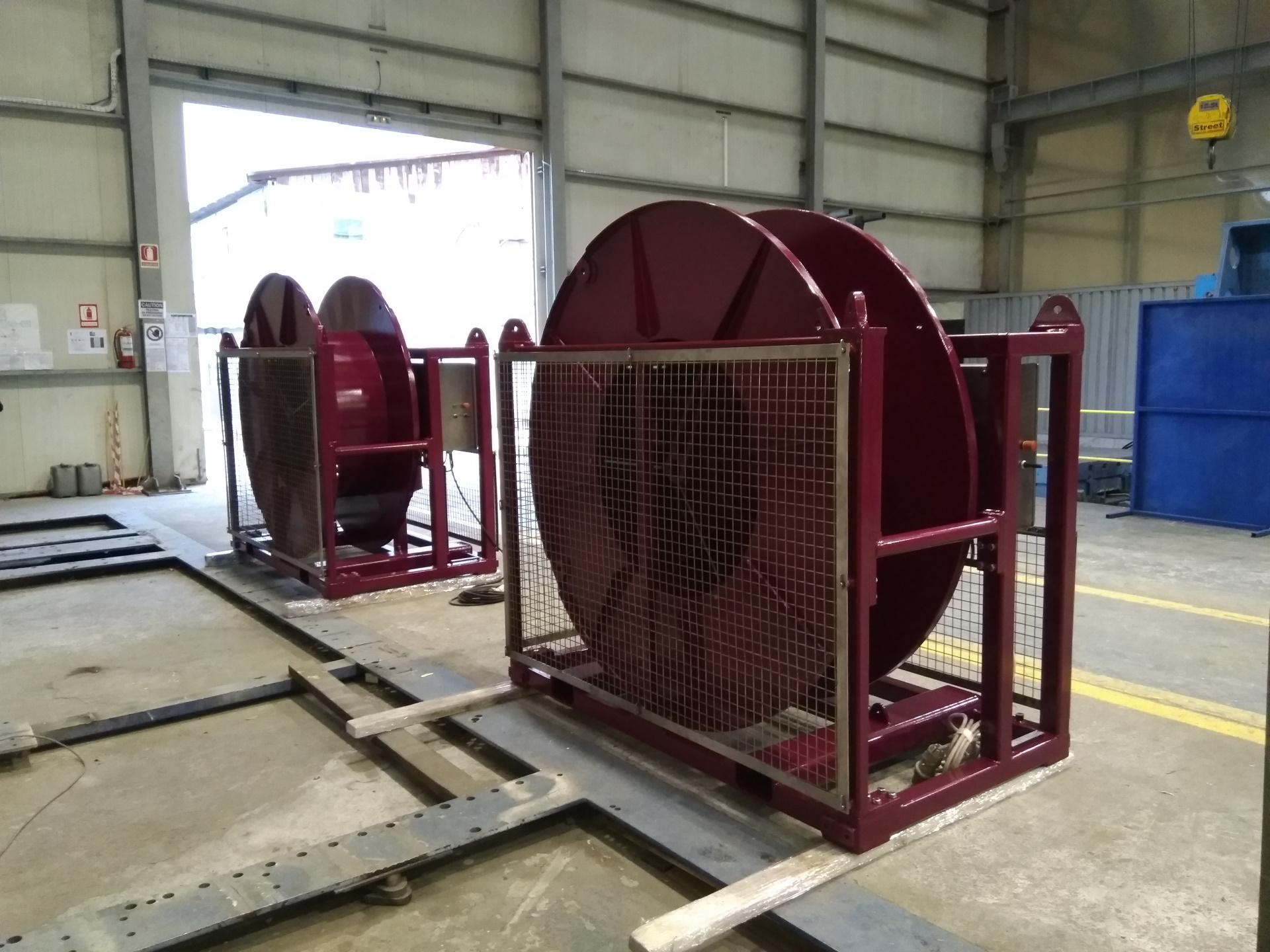

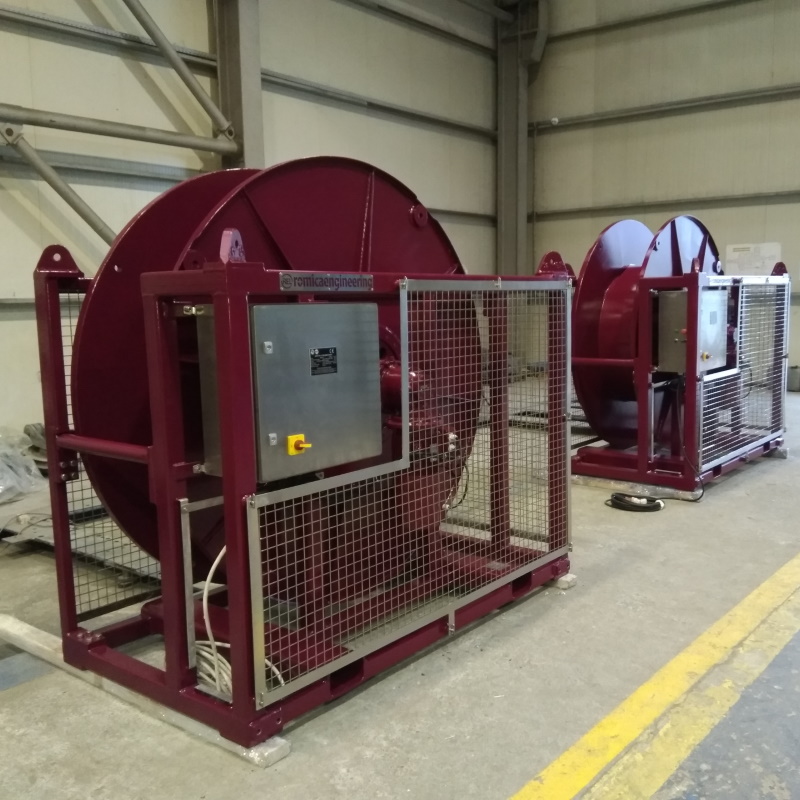

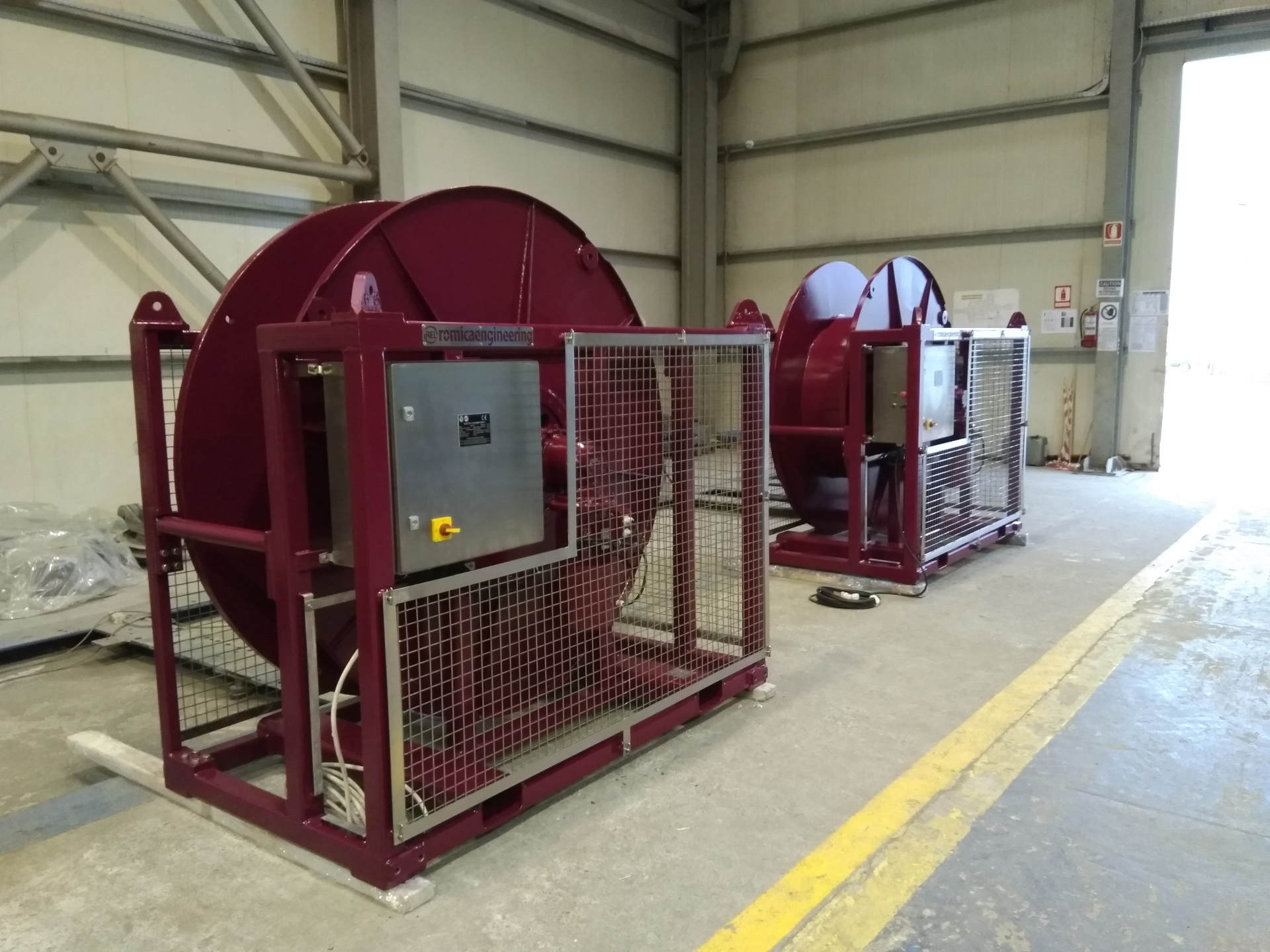

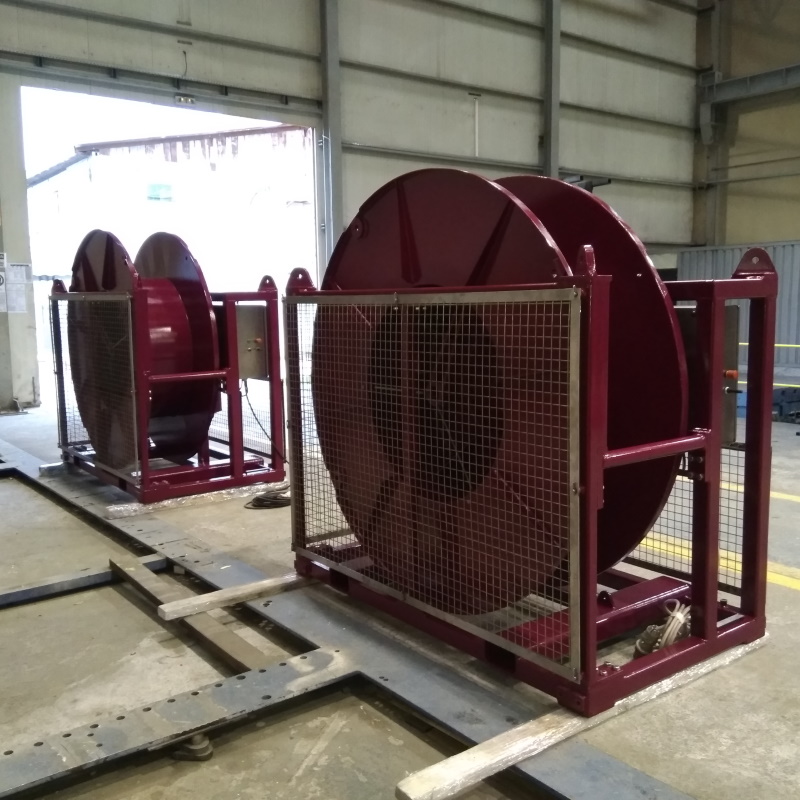

The winch barrel is mounted directly onto the outer face of a vertically mounted slew-ring bearing. The inner ring of the bearing has been mounted onto the frame support.
The winch barrel is driven directly from a Brevini gearbox and a 2.2 kW SEW Electric Motor combination fitted with a failsafe brake unit. The brake, being failsafe, always defaults to on should, for any reason, the electrical supply is lost or the joystick is in its centre (neutral) position.
The Electric Survey Winch can be driven bi-directionally using a proportional joystick, which is mounted locally on the side of the electrical enclosure, the proportional joystick controls both the direction and the speed of the winch in heave and pay out.
The winch is supplied with the following:
| 1 Set - sacrificial steel feet/mounting plates for mounting at ship | 1 Set - Master Links and Shackles or a 4 leg lifting sling and shackles | Canvas Cover for transport and storage |
| Marine grade paint system (Details can be supplied on application) | 12 Month Warranty | Operation and Maintenance Manual in Electronic Format |
Optional extras: - please note these are not in the scope of supply but can be offered at extra cost.
| 1 Off – Slip Ring details to be supplied with order | 1 Off – Full Spares Kit | 1 Set – Spare sacrificial feet/mounting plates |
| 1 Off – Extended Warranty | 1 Off – Winch running flashing lights and/or Klaxon | Remote Control wired or wireless |
