Coring Electrical
2.75Te - 3500m Datasheet
| Weight without cable | 4032 Kg |
| Cable diameter | 14 mm |
| Capacity | 3500 m |
| Line speed - First Layer | 54 m/min |
| Line speed - Top Layer | 100 m/min |
| WLL - First Layer | 2760 Kg |
| WLL - Top Layer | 1500 Kg |
| Brake Minimum 1.5 WLL - First Layer | 4140 Kg |
| Brake Minimum 1.5 WLL - Top Layer | 2250 Kg |
| Supply Required | 380-440V-3 Ph- 50/60 Hz |
| Winch Electrical Motor | 30 Kw IP56 IE3 |
| Level Wind Electrical Motor | 1.5 Kw IP56 IE3 |
| Local Proportional Control | Bi-directionally proportional joystick and speed control potentiometer |
| Level wind | Electrically automatic pulse driven level wind with manual adjustment |
| Dimensions (LxWxH) Footprint | 2570 x 2020 x 1811 mm 2570 x 2020 mm |
| Slip ring | Designed to accept Focal 180 or similar not within scope of supply |
| Cable Lead-off Angle | +/-15° Horizontal plane Min + 0° Max + 45° Vertical plane |

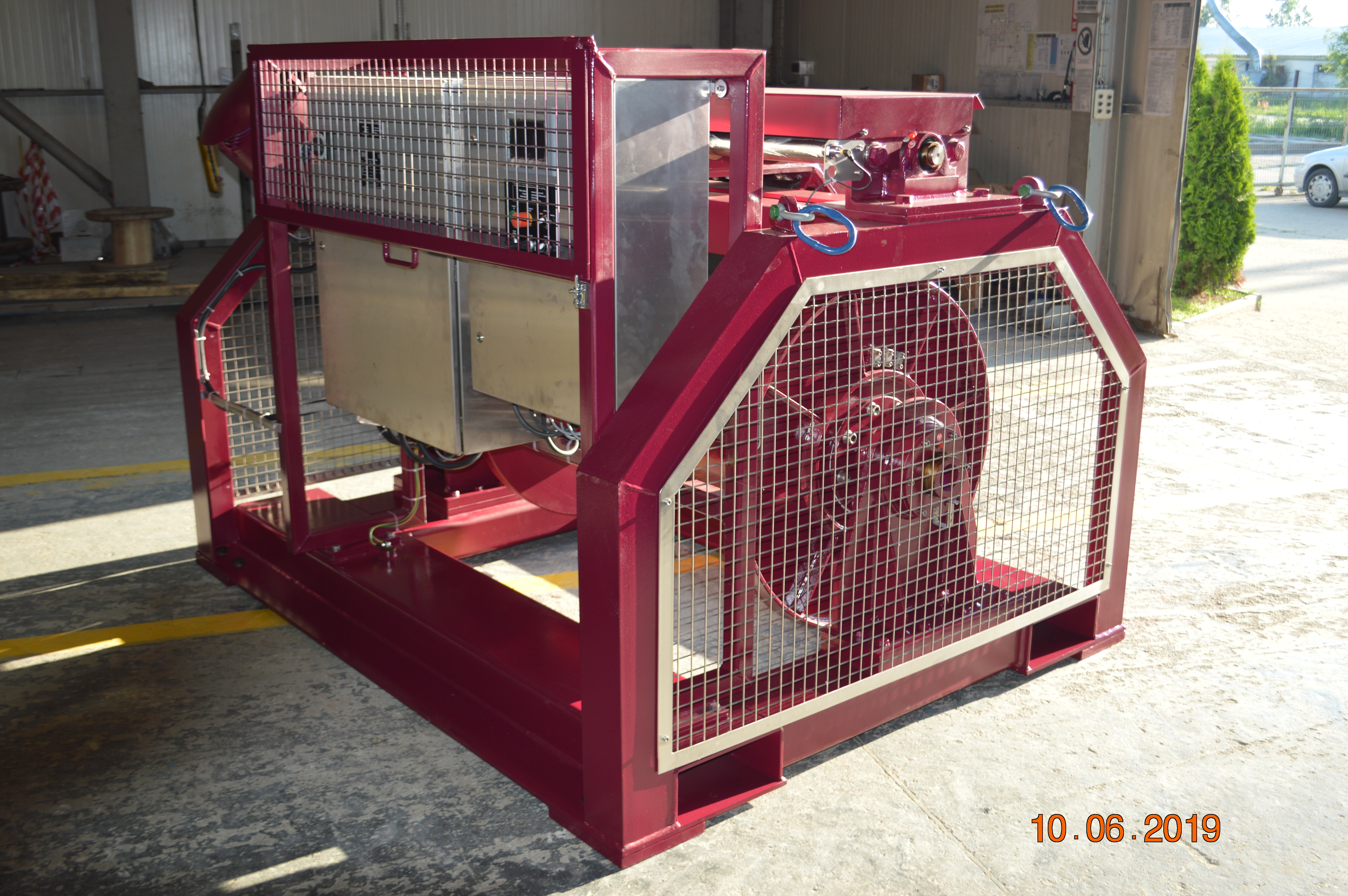

| Frame details | Crash frame with guards, fork lifting pockets and certified lifting lugs |
| Winch drum dimensions | Drum core Ø 508 mm, Drum Length 1260 mm, Flange Ø 1050 mm |
| Drum details | Plain drum; the wire is stored in 17 lays with 90 turns per lay |
| Cable | Dyneema 14 strand D-Tract |
| Monitoring | Cable line In / Out via HMI |
Principle of Operation:

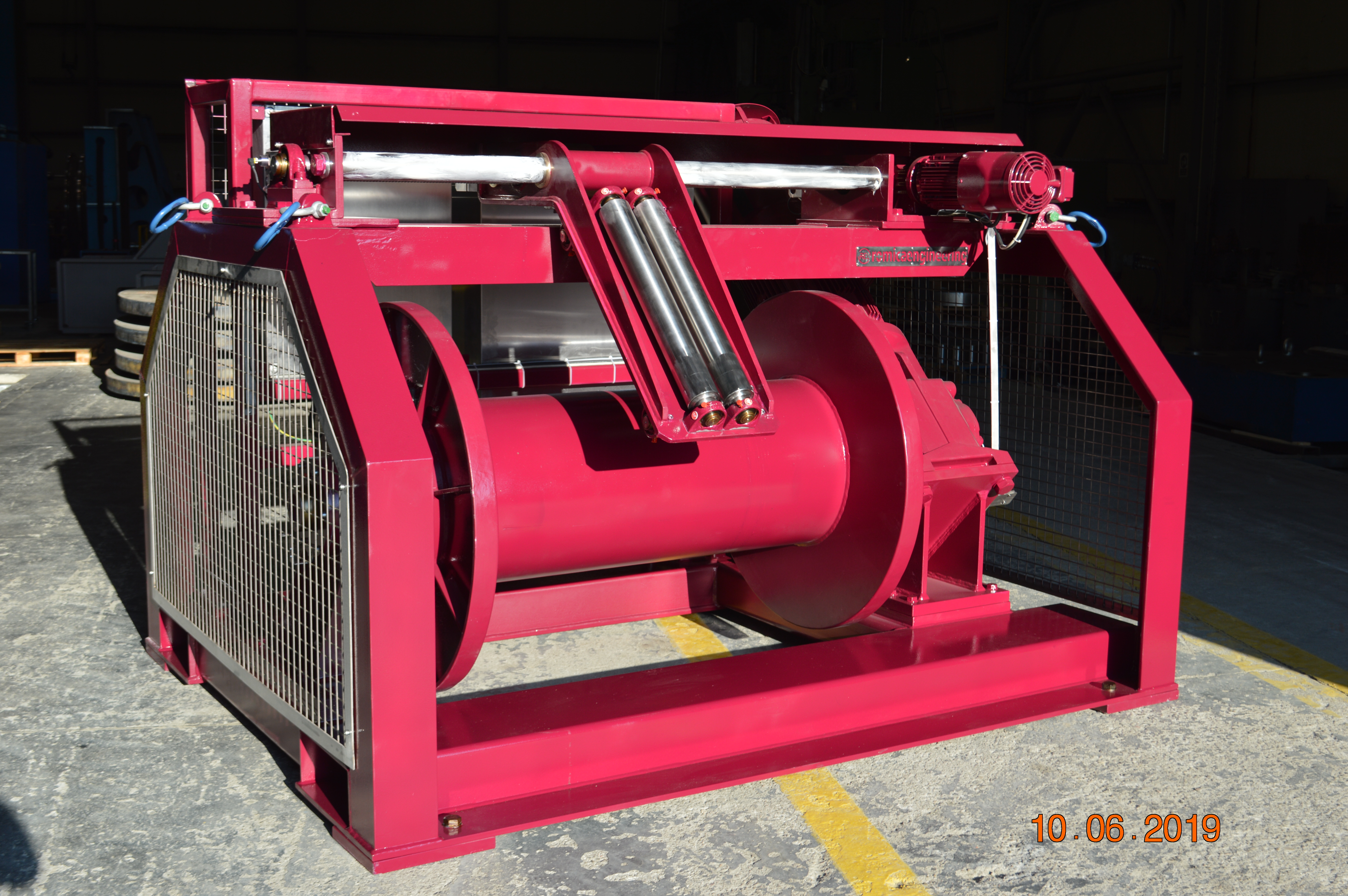

The winch drum is mounted on the output shaft of a 30 kW SEW electric gearmotor fitted with a failsafe brake unit and is connected to the corresponding drive inverter in the control panel. The speed of the drum is proportionally controlled via a potentiometer; its direction is determined by a 3 position, spring return to centre, joystick. These are both mounted locally on the Electric Winch Enclosure.
The brake, being failsafe, always defaults to on should, for any reason, electrical supply is lost or the control joystick is in its centre position. The non-drive side housings a bearing and a slipring.

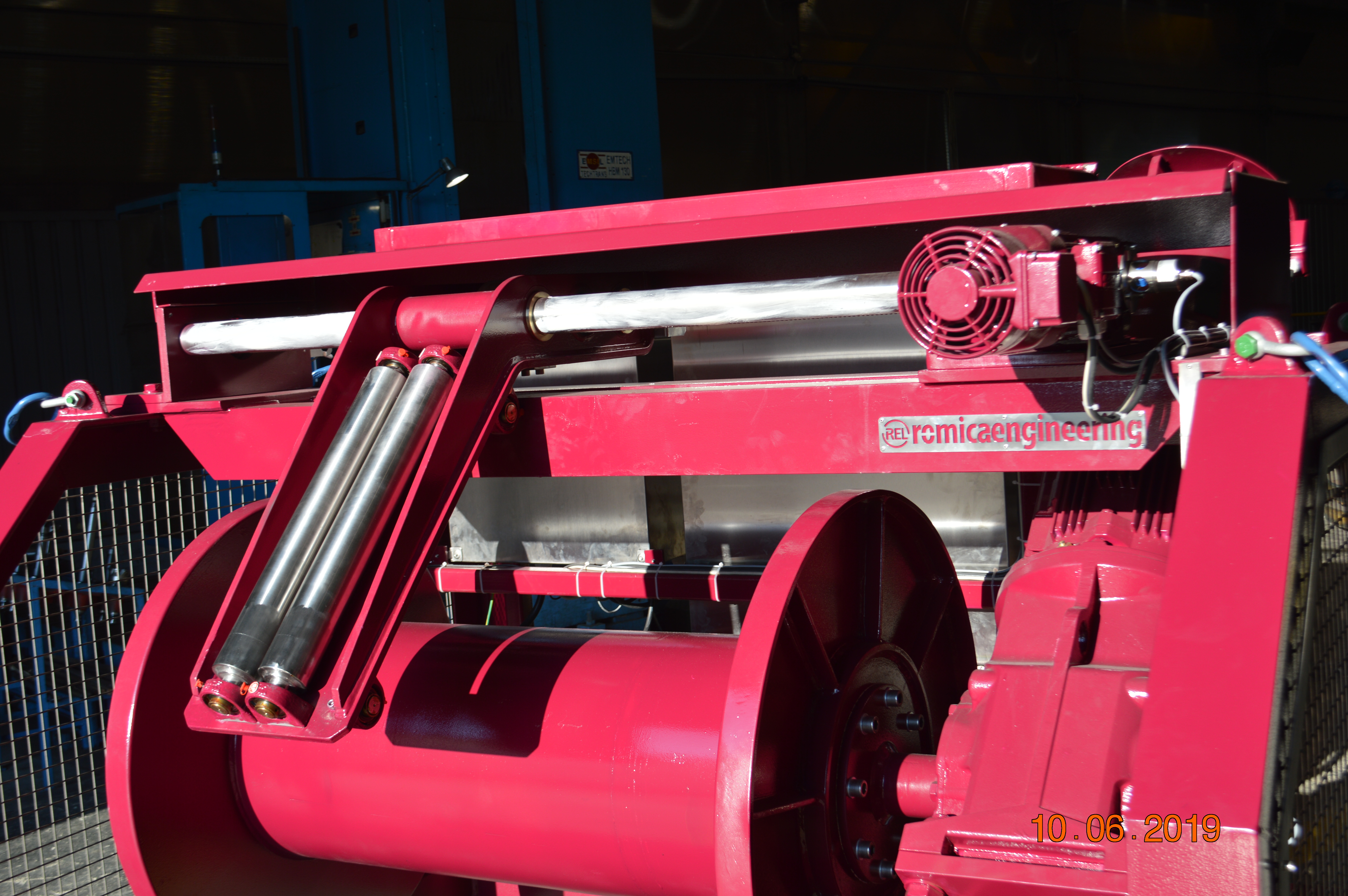

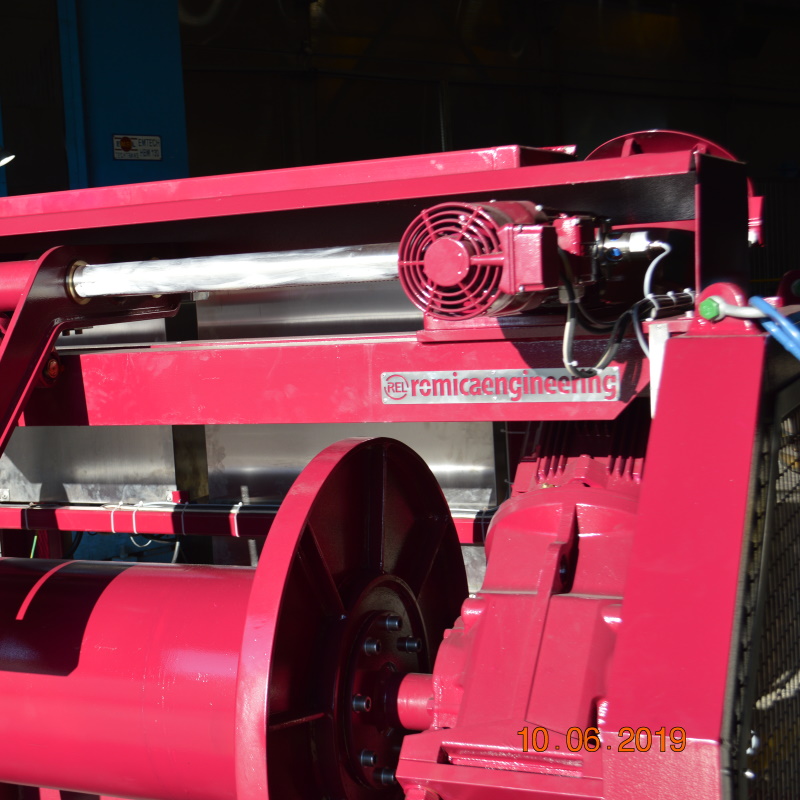

The Level wind electrically driven from the 1.5 kW SEW Electric gearmotor. The level wind is PLC controlled, is automatic with a manual override. The Level wind can be adjusted to accept a variety of cable diameters if required.
The winch is supplied with the following:
| 1 Set - sacrificial steel feet/mounting plates for mounting at ship | 1 Set - Master Links and Shackles or a 4 leg lifting sling and shackles | Canvas Cover for transport and storage |
| Marine grade paint system (Details can be supplied on application) | 12 Month Warranty | Operation and Maintenance Manual in Electronic Format |
Optional extras: - please note these are not in the scope of supply but can be offered at extra cost.
| 1 Off – Slip Ring details to be supplied with order | 1 Off – Full Spares Kit | 1 Set – Spare sacrificial feet/mounting plates |
| 1 Off – Extended Warranty | 1 Off – Spare Programmed SD Card for level wind control | Remote Control wired or wireless |
| 1 Off – Winch running flashing lights and/or Klaxon | 1 Off – Laptop c/w software and leads for on-site fault diagnosis |
