Rov Winches

0.3Te - 1000m Datasheet

Weight without cable 1750 Kg
Cable diameter 25.7 mm
Capacity 1000 m
Line speed - First Layer 55 m/min
Line speed - Top Layer 79 m/min
WLL - First Layer 300 Kg
WLL - Top Layer 229 Kg
Brake Minimum 1.5 WLL - First Layer 450 Kg
Brake Minimum 1.5 WLL - Top Layer 344 Kg
Supply Required 380-440V-3 Ph- 50/60 Hz
Winch Electrical Motor 4 Kw IP56 IE3

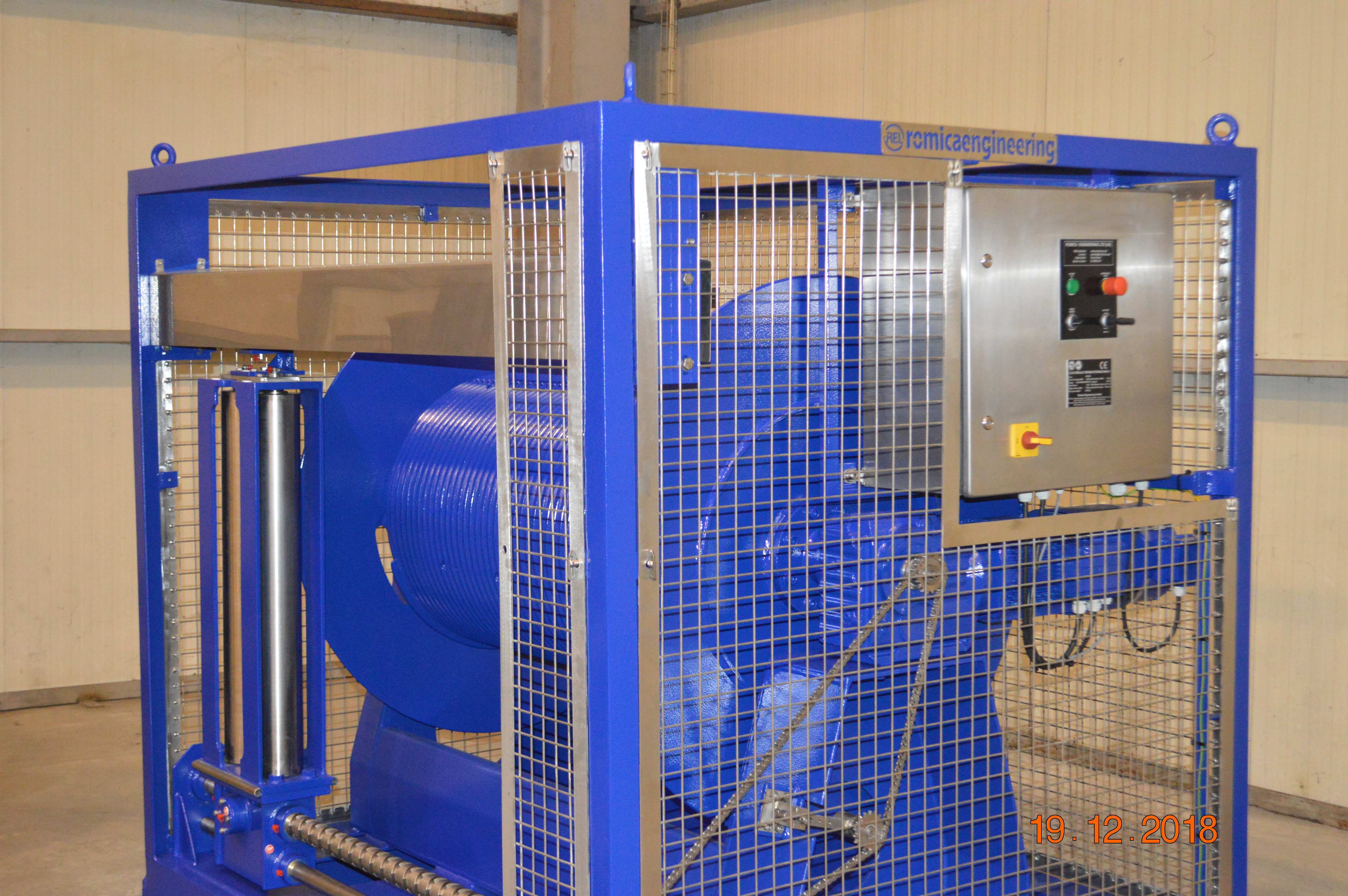

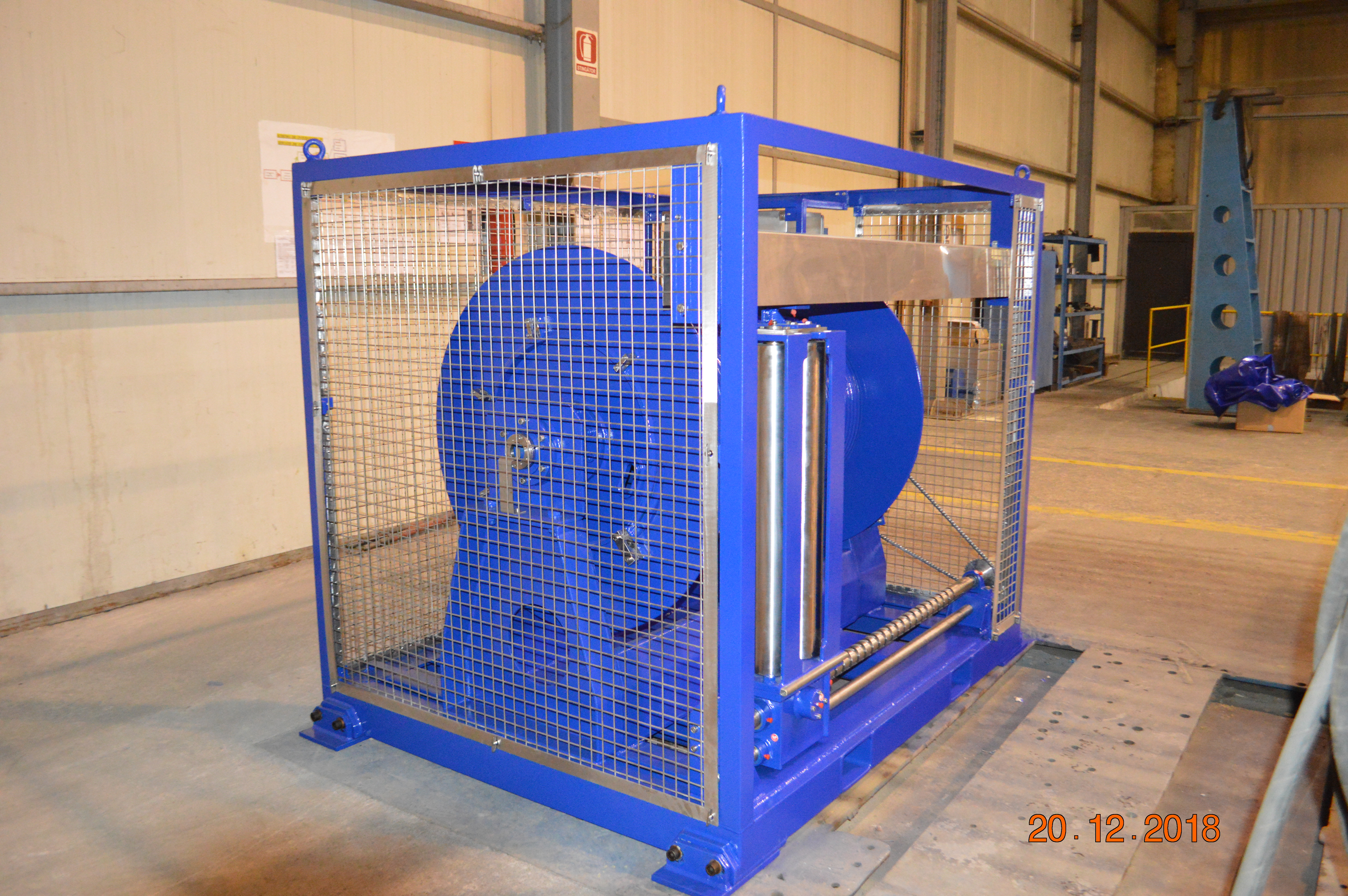

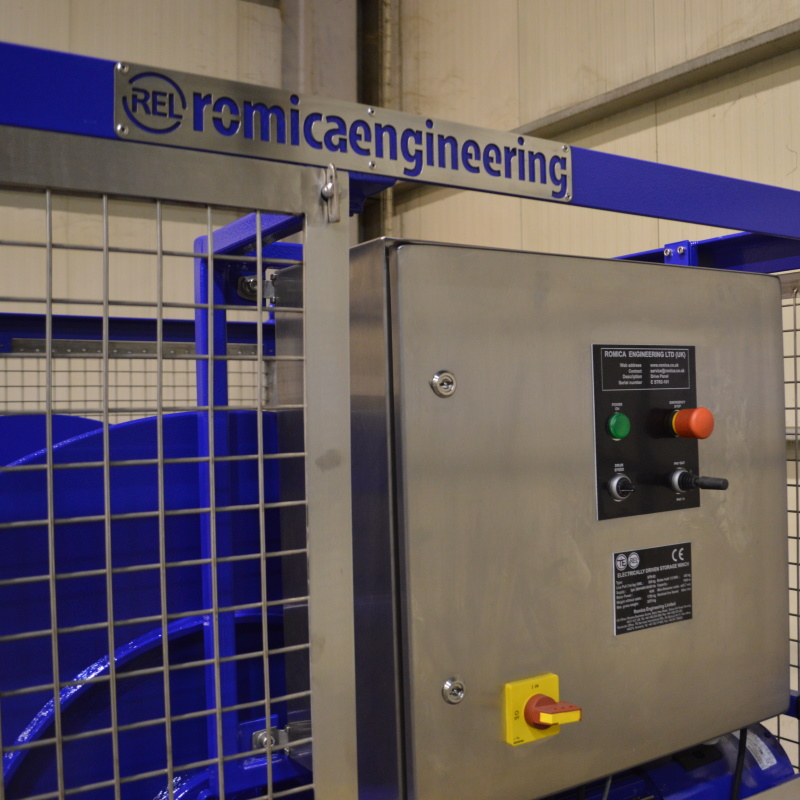

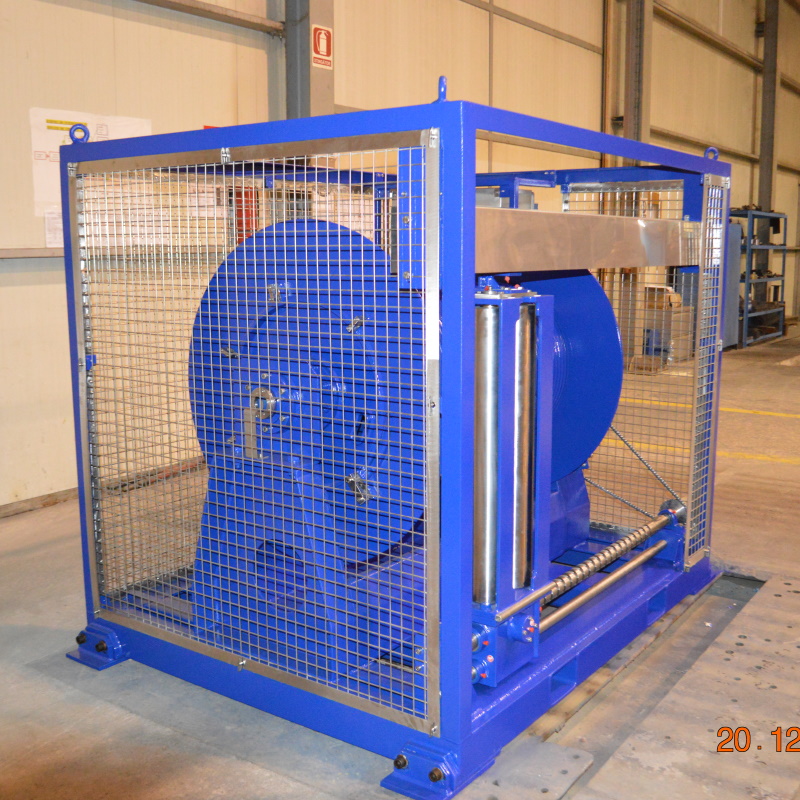

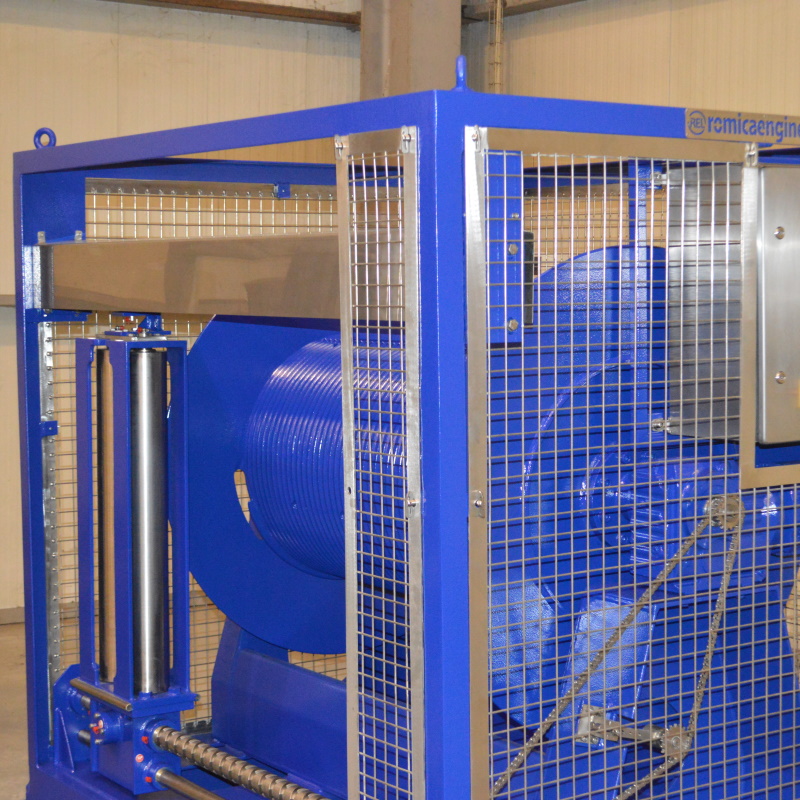

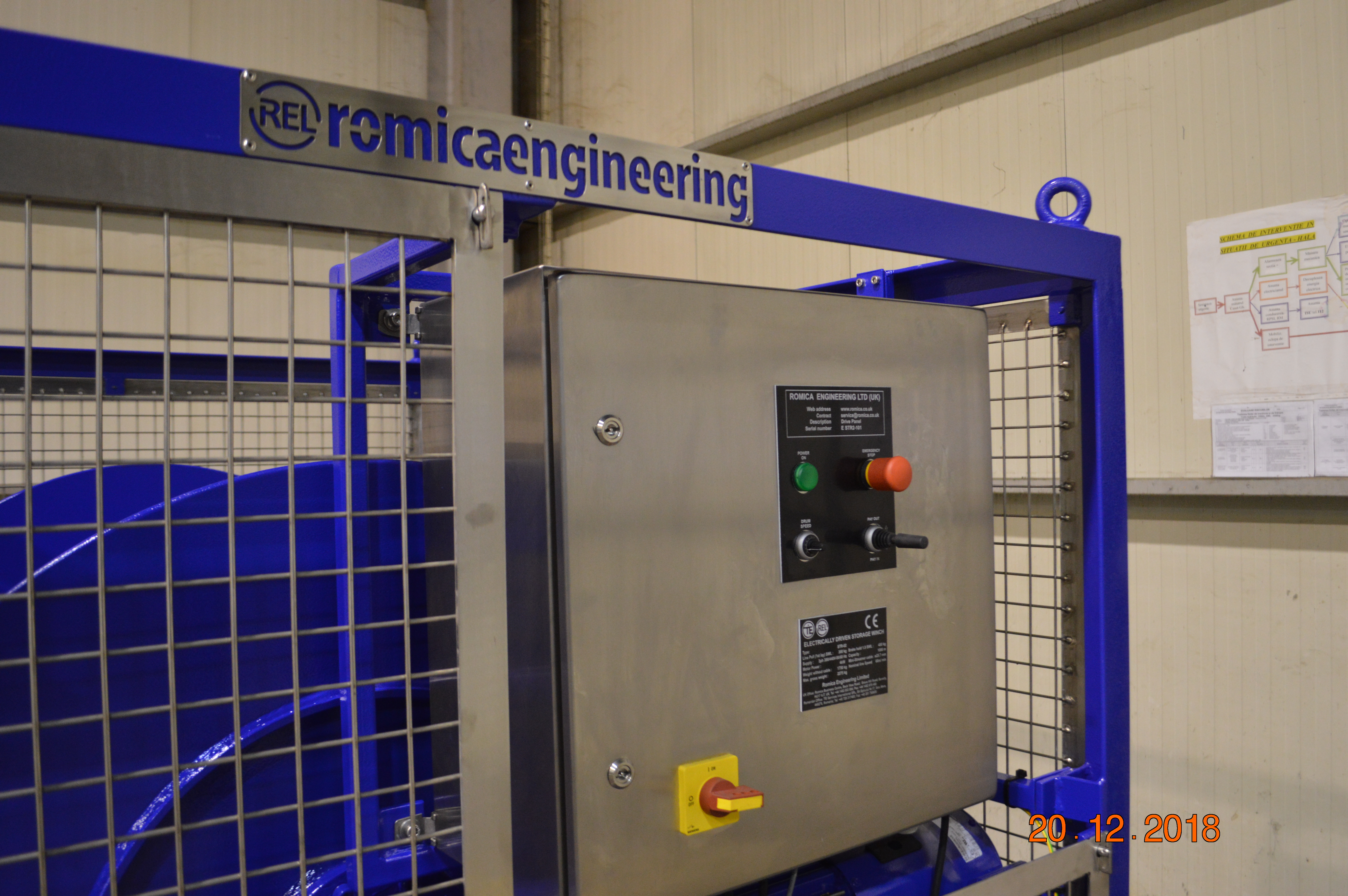

Local Proportional Control Bi-directionally proportional joystick and speed control potentiometer
Level wind Mechanical chain driven
Dimensions (LxWxH)
2100 x 1691 x 1890 mm
2240 x 1650 mm
Slip ring Designed to accept MOFLON MF0180 or similar not within scope of supply
Cable Lead-off Angle +/-30° Horizontal plane Min + 4° Max + 45° Vertical plane
Frame details Crash frame with guards, fork lifting pockets and certified lifting lugs
Winch drum dimensions Drum core Ø 668 mm, Drum Length 1242 mm, Flange Ø 1160 mm
Drum details Lebus shell drum; the wire is stored in 7 lays with 55 turns per lay
Cable Umbilical CS 7292

Principle of Operation:

The winch drum is mounted on the output shaft of a 4 kW SEW electric gearmotor fitted with a failsafe brake unit and is connected to the corresponding drive inverter in the control panel. The speed of the drum is proportionally controlled via a potentiometer; its direction is determined by a 3 position, spring return to centre, joystick. These are both mounted locally on the Electric Winch Enclosure.

The brake, being failsafe, always defaults to on should, for any reason, electrical supply is lost or the control joystick is in its centre position. The non-drive side housings a bearing and a slipring.

The Level wind is mechanically chain driven from the SEW Electric gearmotor drive shaft and the cable is guided vis the level wind carriage assembly.


The winch is supplied with the following:

1 Set - sacrificial steel feet/mounting plates for mounting at ship 1 Set - Master Links and Shackles or a 4 leg lifting sling and shackles Canvas Cover for transport and storage
Marine grade paint system (Details can be supplied on application) 12 Month Warranty Operation and Maintenance Manual in Electronic Format

Optional extras: - please note these are not in the scope of supply but can be offered at extra cost.
